• AAL Kembla

    Built: 2009
  • AAL Brisbane

    Built: 2010
  • AAL Newcastle

    Built: 2012
  • AAL Singapore

    Built: 2010
  • AAL Dalian

    Built: 2010
  • AAL Shanghai

    Built: 2010
  • AAL Kobe

    Built: 2011
  • AAL Melbourne

    Built: 2011

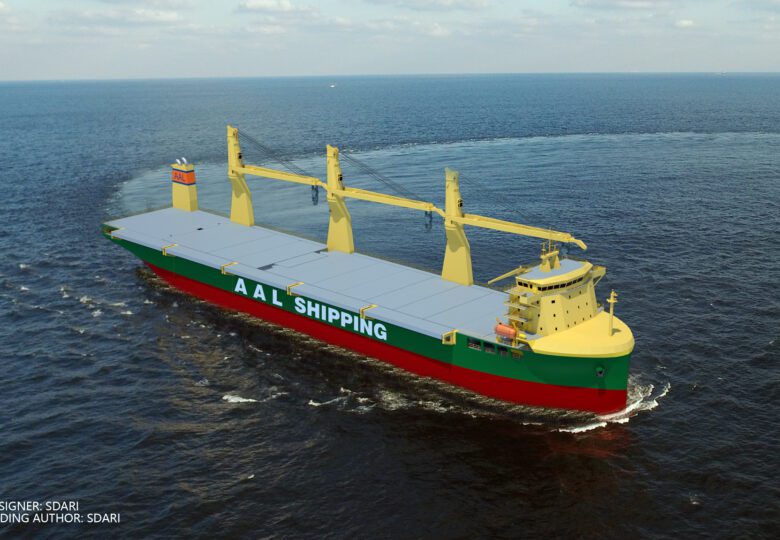

Huanghai MPC 30

Multipurpose Heavy-lift Vessel

Ships
  • AAL Newcastle (2012)
  • AAL Hongkong (2011)
  • AAL Kembla (2009)
  • AAL Singapore (2010)
  • AAL Dalian (2012)
  • AAL Brisbane (2010)
  • AAL Shanghai (2010)
  • AAL Pusan (2011)
  • AAL Kobe (2011)
  • AAL Melbourne (2011)

General

TEU: 2029
Deadweight: abt 31.000 mt on abt 11.20 m scantling draft
Shipyard: Huanghai Shipbuilding Co. Ltd
Class: GL 100A5 E Multi-Purpose Cargo Ship, G NAV-OC, IW, SOLAS II-2 Reg. 19 + MCE AUT

Details

LOA: 193.90 m
LBP: 183 m
DEPTH MOULDED: -
BEAM MOULDED: 28.20 m
Speed: abt 16.8k on 34.1 tons 380 + 3.5 tons ifo, alt 13k/19k

Container Capacity

Containers: -
Homogenous Load: abt 1.350 TEU at 14 mt each
Container Stackweight: 20 ft 40 ft
On hatch cover & upper deck:
In Hold: no. 1-4: 144 mt
no. 5: 120 mt
no. 1-4: 180 mt
no. 5: 150 mt
Tweendeck / Pontoons: 35 mt 45 mt
Hatchcovers hold: no. 1: 50 mt
no. 2-5: 70 mt
no. 1: 65 mt
no. 2-5: 85 mt
Uppder deck cellular: 90 mt 110 mt
Reefer capacity: 145
Holds / Hatches: 5 / 8
Hatchcovers: Two removeable tweendecks (pontoons) in four different positions. Tank tops and bulkheads are flush. Weatherdeck hatchcovers are hydraulically operated.

Machinery

Main Engine: Wartsila 7RT-flex 50
Auxiliary Engine: 3 sets of abt. 950 kW

Gear

  • 1 x 50 mt
  • 2 x 350 mt (comb 700 mt)
  • 1 x 100 mt (comb 450 mt)
  • Jibs at seagoing position to the sky
